RPLidar

These instructions are for an SLAMTEC RPLIDAR A1M8. This unit is used on the TurtleBot4 and can be added to the Unitree Go2.

​
Architecture

The collision avoidance and path checking code pre-computes 9 different paths, 4 to the left, one straight ahead, 4 to the right, and one to the back. For each of the 9 possible paths, the code checks whether the path approaches any detected object to within half_width_robot. If not, the path is considered to be a valid choice and the motion system can execute that path.

​
Assumptions

The code assumes that any unpredictable barriers (e.g. humans crossing the path of the robot) will be avoided using separate code within the action driver, such as by issuing a “STOP” command when an object is detected in front of the robot.

​
Setup

Run rptest.py (located in system_hw_test) to determine the sensor_mounting_angle and the angles_blanked. These values depend on how you mounted the sensor and the radial position of any fixed obstructions, such as mounting brackets.
"""
Robot and sensor configuration
"""
half_width_robot = 0.20  # the width of the robot is 40 cm
relevant_distance_max = 1.1  # meters
relevant_distance_min = 0.16 # meters
sensor_mounting_angle = 180.0  # corrects for how sensor is mounted
angles_blanked = [[-180.0, -160.0], [32.0, 46.6]]

​
How to determine the sensor_mounting_angle and the angles_blanked

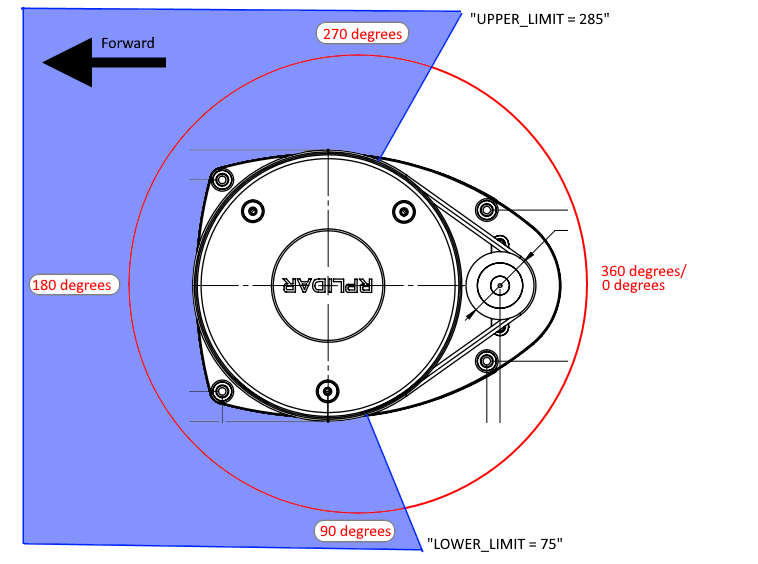

  • sensor_mounting_angle: The sensor_mounting_angle refers to the angle between the LIDAR sensor’s scanning plane and the horizontal plane of your robot or platform. The sensor_mounting_angle can be read physically from the LIDAR. Refer to the following image for guidance:
sensor_mounting_angle
  • angles_blanked: The angles_blanked array can be used to prevent fixed obstructions in the field of view of the LIDAR from producing erroneous object avoidance messages.

​
Unitree RPLidar

Determine the serial port the sensor is using:
ls /dev/tty.*
ls /dev/cu.*
Then, run
uv run rptest.py --serial /dev/cu.usbserial-0001

​
TurtleBot4

By default, the TurtleBot4 is configured to use the RPLidar A1M8. You can verify this by running:
ls -l /dev/RPLIDAR
To see the raw LIDAR data, provide the robot’s URID (such as OM742d35Cc6634) and run:
uv run rptest.py --URID OM123435Cc1234
Typically, this command would be executed on your laptop, connected to the TurtleBot4 via Zenoh.

​
Using the RPLidar A1M8 in OM1

Configure the .json5 as needed:
"""
Robot and sensor configuration
"""
{
  "type": "RPLidar",
  "config": {
    "use_zenoh": true, # or false, if you are using serial to connect directly to the LIDAR
    "serial_port": "/dev/cu.usbserial-0001",
    "half_width_robot": 0.21, # the width of the robot is 40 cm
    "relevant_distance_max": 1.1, # meters
    "sensor_mounting_angle": 180.0, # corrects for how sensor is mounted relative to robot
    "angles_blanked": [[-180.0, -160.0], [32.0, 46.6]]
  }
}
